Cable Certification Testing in Utah — Copper & Fiber

Most cabling installers tell you it works. We prove it. WITS IT Services certifies every copper and fiber run to TIA and ISO standards using a Fluke DSX-8000 CableAnalyzer with CertiFiber Pro and OptiFiber Pro modules, and hands you a documented, warranty-grade test report for every drop.

For Utah builders, general contractors, and commercial projects where "it lights up" is not good enough, certification is the difference between a clean sign-off and a callback six months later. A Pass/Fail result with headroom margins on every drop is what activates a manufacturer system warranty, satisfies an inspector, and settles a dispute over an install.

We certify our own installations and we certify cabling other contractors installed. Request a certification quote — call 385-242-2514.

What Cable Certification Testing Solves

Nobody Can Prove the Cable Meets the Standard

"We tested it" usually means someone touched a $30 continuity tester to the run and confirmed the pins were in the right order. That tells you the cable is connected. It tells you nothing about whether it holds up at gigabit or 10-gigabit speeds under load. WITS certifies with a Fluke DSX-8000 CableAnalyzer against the full TIA-568 parameter set — insertion loss, NEXT, PS-NEXT, return loss, delay skew — and delivers a documented Pass/Fail with headroom margins for every drop.

The Manufacturer Warranty Will Not Activate

Structured cabling manufacturers do not hand out 15–25 year system warranties on a handshake. They require certified test results from a recognized certifier, submitted per drop, before the warranty is registered. Our test reports contain exactly what the manufacturer's warranty program asks for — standard tested against, per-drop results, headroom, and equipment and operator records. If your job needs to close out warranty-ready, this is the step that gets it there.

The GC or Inspector Will Not Sign Off

More Utah general contractors, architects, and commercial inspectors now require documented cable certification before they will accept the low-voltage scope. Without it, close-out stalls and retention sits unpaid. WITS delivers a professional PDF test report — typically within a few business days of testing — that drops straight into your project documentation package.

You Need an Independent Read on a Sub's Install

When a builder, GC, or IT department needs to know whether a subcontractor's cabling actually meets spec, the sub's own word is not evidence. Third-party certification is. WITS provides independent certification of cabling installed by other contractors — for validating a sub's work before you pay out, registering a warranty on an install you did not perform, or resolving a dispute with data instead of opinions.

Intermittent Failures Nobody Can Trace

A drop that works at a desk and fails under real traffic is almost never a switch problem. It is a marginal cable run — a termination just inside tolerance, a run pulled too tight, or an untested length that never had margin to begin with. On fiber it is usually simpler and more embarrassing: a contaminated connector end-face nobody inspected. Certification does not just say "fail." It says which parameter failed, at what frequency, and by how much — and on fiber, an OTDR trace shows the distance to the event. The fix becomes one identified drop instead of a week of guessing.

What Cable Certification Actually Means

Certification is the highest level of cable testing — well beyond a continuity check. It measures every run against the full TIA-568 and ISO/IEC 11801 performance limits and issues a documented Pass/Fail result with headroom margins. It is what cabling manufacturers require to activate extended system warranties, and what a growing number of Utah general contractors and inspectors require before they will sign off on a job. There are three tiers of cable testing, and only one of them is certification.

Verification

“Is it connected?”

A basic tester confirms the wire map — correct pins, correct pairs, no shorts or opens. It says nothing about performance. This is what most "we tested it" claims actually mean.

Qualification

“Will it run this speed?”

A qualifier estimates whether a run can support a given application — 1 Gbps, for example. Useful for troubleshooting an existing network, but it is not measured against the standard and no manufacturer accepts it for warranty.

Certification

“Does it meet the standard — documented?”

A certifier measures every parameter in the TIA or ISO specification and issues a documented Pass/Fail with headroom margins. This is what WITS delivers, and the only tier that supports warranties and formal sign-off.

What We Certify — Copper & Fiber

Copper — Cat5e, Cat6 & Cat6A

Certification against the TIA-568 Category 5e, 6, and 6A limits. Cat6A is tested across the full 500 MHz sweep — the runs carrying 10 Gbps today and whatever replaces it next. Existing Cat5e plant gets certified too, which is how you find out whether an inherited building is worth keeping or needs replacement.

Fiber — Single-Mode & Multimode

Tier 1 certification for insertion loss, length, and polarity, plus Tier 2 OTDR traces where the project or the warranty program requires them. Connector end-faces are inspected as part of the process — contamination is the most common cause of fiber loss failures and it is invisible without a scope.

Permanent Link & Channel

Permanent link certifies the fixed horizontal run from patch panel to outlet — the standard test for new installations. Channel certifies the complete path including patch cords, which is what an end-to-end performance dispute usually needs.

Full Documentation

Every tested run is recorded, labeled, and exported into one report. Cable IDs match your labeling scheme, so the report reads against your as-built drawings instead of against a set of anonymous drop numbers.

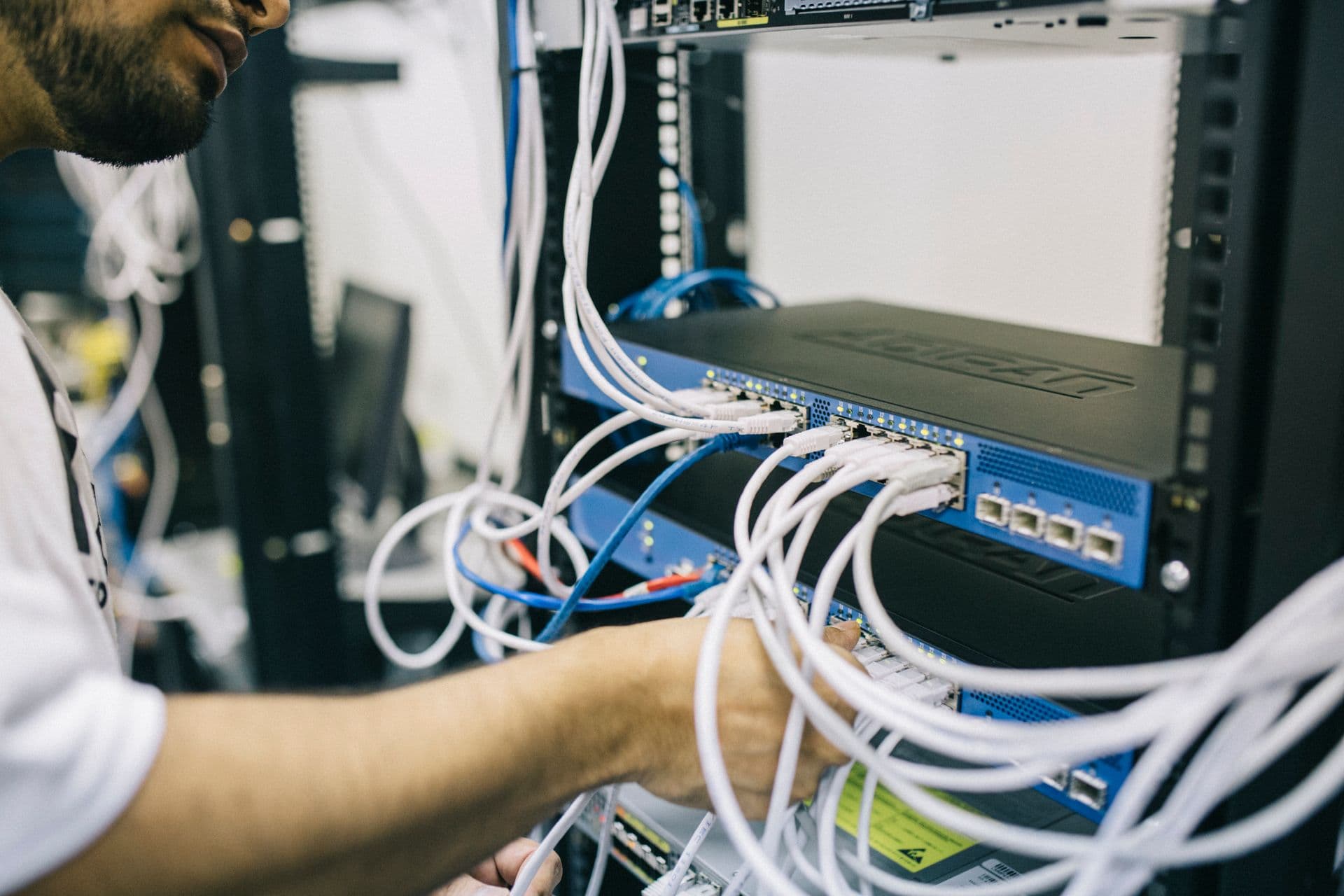

Tested With a Fluke DSX-8000 — Copper and Fiber

We test with the Fluke Networks DSX-8000 CableAnalyzer — the certifier used on enterprise and data-center projects, and the equipment most manufacturer warranty programs are written around. It certifies high-speed copper with test limits to 2000 MHz, meets the TIA Level 2G and IEC Level VI accuracy requirements, and certifies a Cat6A drop in seconds.

Ours is the full kit, which is why this page can offer fiber as well as copper. The DSX-8000 is a modular platform: the copper module handles twisted pair, a CertiFiber Pro optical loss test set handles Tier 1 fiber certification on single-mode and multimode, and an OptiFiber Pro OTDR handles Tier 2 traces and event maps. A fiber inspection scope rounds it out. Plenty of contractors own the copper module and call it fiber certification; the modules are what actually make the difference.

This matters because “we test our cable” means very different things depending on what is in the technician’s hand. A certifier of this class measures the parameters the standard is actually written around — insertion loss, near-end and power-sum crosstalk, return loss, propagation delay and delay skew — and records each result against the applicable limit rather than against a rule of thumb.

Every result is captured on the unit, time-stamped, and exported into a professional report. No transcription, no re-typing, no “trust me.” If a run passes, the report shows by how much. If it fails, the report shows exactly where.

Request a Quote

Tell us the project, the drop count, and the cabling type — Cat5e, Cat6, Cat6A, or fiber — plus whether you need permanent link or channel certification, and Tier 1 or Tier 2 on fiber. New construction, tenant improvement, existing plant, or another contractor's install: all of it is in scope.

We quote per drop, with volume pricing on larger projects. Same-day quotes on most requests. Call 385-242-2514.

On-Site Certification

Our technician tests every run with the Fluke DSX-8000 against the applicable TIA-568 or ISO/IEC 11801 limits — the copper module for twisted pair, CertiFiber Pro for fiber loss, and OptiFiber Pro for OTDR traces where the project calls for Tier 2. Each result is captured and time-stamped on the unit — nothing is transcribed by hand.

A Cat6A drop certifies in seconds, so a typical 50-drop office is tested in a single visit. We schedule around your construction sequence or after hours in occupied spaces.

Documented Test Report

You receive the full report as a professional PDF: per-drop Pass/Fail, the standard each run was tested against, headroom margins on every parameter, and the equipment and operator records. Most projects are delivered within a few business days of testing.

Failed drops are identified individually with the failing parameter, so remediation is targeted. We can re-terminate and re-test, or hand the findings to your installer.

Sign-Off Ready

Pass results support inspection and project close-out, and give the manufacturer what they need to activate the extended system warranty on the installed cabling.

The same report becomes the baseline documentation for the life of the plant — when someone asks in three years whether a run was ever certified, the answer is a file, not a memory.

Who Cable Certification Testing Is For

Home builders & custom-home GCs

Certified structured wiring sign-off on new construction, so the low-voltage scope closes out with documentation instead of a verbal assurance.

Low-voltage trade partner for Utah home builders →

Commercial GCs & tenant improvement

Documented results for inspection, owner handoff, and project close-out on office, retail, medical, and warehouse build-outs across the Wasatch Front.

Commercial structured cabling installation →

IT departments & facility managers

Validate new runs before you accept them, or certify an existing plant to find out what you actually inherited before the next hardware refresh.

Business IT services in Utah →

Other low-voltage contractors

Independent, third-party certification of cabling you installed — for manufacturer warranty registration, a client requirement, or dispute resolution. We certify; we do not solicit your client.

Business network & WiFi solutions →

What You Receive — the Structured Cabling Test Report

A complete, professional test report delivered as a PDF, containing a per-drop Pass/Fail result, the standard each run was tested against, headroom margins on every measured parameter, the cable ID as labeled on site, and the equipment and operator records that make the report auditable.

That single document covers inspection, manufacturer warranty registration, and your project documentation package — and it stays useful long after close-out as the performance baseline for the installed plant. If you would rather have certification bundled into the install itself, our commercial structured cabling installation includes documented test results on every drop we terminate.

Cable Certification Testing Across Utah

WITS provides cable certification testing throughout the Wasatch Front from our Lehi headquarters — Salt Lake City, West Valley City, Sandy, Draper, Murray, Midvale, Taylorsville, South Jordan, West Jordan, Riverton, Herriman, Provo, Orem, Lehi, American Fork, Pleasant Grove, Bountiful, Layton, Ogden, Park City, and Heber City. We travel statewide for larger commercial projects.

We work directly with general contractors, custom home builders, architects, commercial property managers, and other low-voltage contractors across Utah. Call 385-242-2514 to schedule certification or to get your cabling certified before close-out.

Cable Certification Testing FAQ

Common questions about certified cable testing and test reports for Utah builders, contractors, and commercial projects

We certify to the industry standards — TIA-568 and ISO/IEC 11801 — using the applicable Cat5e, Cat6, or Cat6A performance limits for permanent link or channel configurations, and the relevant fiber standards for single-mode and multimode.

Every copper run is tested against the full parameter set — insertion loss, NEXT and PS-NEXT, return loss, delay skew, wire map, and length — not just continuity. Fiber is certified for insertion loss, length, and polarity at Tier 1, with an OTDR trace at Tier 2 where the project requires it. Results are recorded with headroom margins so you can see how much margin a passing run actually has.

Yes. You receive a professional PDF report with a Pass/Fail result and headroom margins for every drop, the standard it was tested against, and the equipment and operator records.

That report is what an inspector, a manufacturer warranty program, and your own project close-out documentation all ask for. It is included on every certification project — not an add-on.

Yes. Third-party certification of cabling installed by others is one of our most requested services in Utah. Builders and GCs use it to validate a subcontractor's work before final payment, IT departments use it to document an inherited plant, and low-voltage contractors use it to register manufacturer warranties on their own installs.

We report the data as measured. If a run fails, the report says which parameter failed and by how much — which is exactly what makes it useful in a dispute.

Yes. We certify both — copper (Cat5e, Cat6, and Cat6A) and fiber (single-mode and multimode) — with the Fluke DSX-8000 and its fiber modules. Fiber certification covers Tier 1 insertion loss, length, and polarity, and we run Tier 2 OTDR traces where the project or the manufacturer's warranty program requires them.

We also inspect connector end-faces, which matters more than most people expect: contamination on a connector is the single most common cause of fiber loss failures, and it is invisible without an inspection scope.

Verification checks that a cable is connected correctly — the right pins on the right pairs. Qualification checks whether a run can carry a given speed, such as 1 Gbps. Certification, which is what we provide, measures the cabling against the full TIA or ISO performance standard and documents a Pass/Fail result with margins.

Certification is the only one of the three that supports manufacturer system warranties and formal project sign-off. The other two produce an answer; certification produces evidence.

Usually, yes. Most structured cabling manufacturers require certified test results before they will activate their extended system warranties, which typically run 15–25 years and cover both components and performance.

Our reports provide exactly what those warranty programs ask for. If you know which manufacturer's warranty you are registering, tell us when you request the quote and we will format the results accordingly.

Certification is priced per drop, and the rate depends on the cable category, the total drop count, and whether the drops are readily accessible. Volume pricing applies to larger projects, and certification is priced lower when it is part of a WITS structured cabling installation than as a standalone third-party engagement.

Call 385-242-2514 with your drop count and cable type for a quote — most come back same day.

For most projects we deliver the documented report within a few business days of testing, and often sooner on smaller jobs. Testing itself is fast — a Cat6A drop certifies in seconds — so the site visit is rarely the bottleneck.

If you are working against a close-out deadline, tell us the date when you request your quote and we will confirm a delivery timeline in writing.

We provide cable certification testing across Utah — the Wasatch Front and surrounding areas, including Salt Lake, Utah, Davis, and Summit counties, and we travel statewide for larger projects.

Call 385-242-2514 to confirm coverage and scheduling for your project.
